- RotaFlow spreading system.
- Fully automatic weighing system with unique reference sensor.
- FlowPilot for quick and easy adjustment.
- Easy border spreading systems are available.

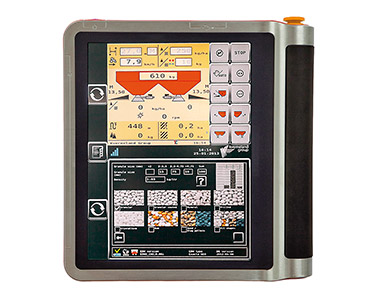

- ISOBUS 11783 compatible for easy plug and play.
- No impact, no fragmentation, no dust: Central release point, smooth acceleration and centrifugal force accelerates fertiliser up to disc speed before it reaches the vane.
- Accurate spreading pattern: A double overlap spreading pattern gives unrivalled accuracy. The 8 vanes per discs are ensuring a continuous flow of fertiliser to the field. This is important for high capacity spreading and forward speed.
- Minimal wind influence, maximum tolerance: Flat discs and a horizontal flow of fertiliser give a symmetrical spreading pattern.
- Consistent spreading pattern: Eight vanes per disc, eight sectors per revolution give an equal distribution. Double overlap spreading pattern.
- Guaranteed accuracy on slopes: The fertiliser always contacts the vanes at the same point, also on slopes and travels the complete length of the vane.
- Continuous dynamic “online – calibration” with high frequency communication signal.
- Kubotas unique reference sensor technology: all negative influences are automatically corrected and eliminated, ensuring utmost spreading accuracy even on hill sides. The Kubota reference sensor gives you absolute accuracy, because every kilo counts!

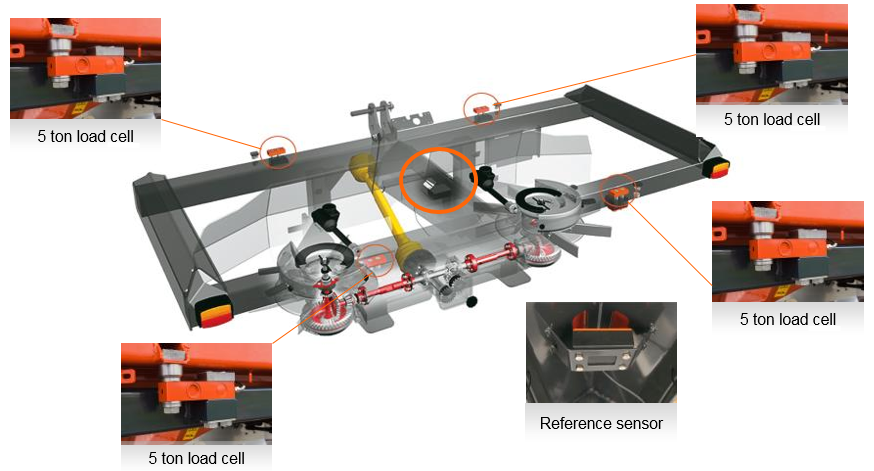

- Load cells in combination with the unique reference sensor:
– Auto calibrating and continuous weighing system
– Automatic correction on slopes
– Automatic correction of shocks, even on rough terrain
– Automatic speed related dosing system
– No calibration test needed - Highest accuracy in all conditions: even spreading quality guaranteed! Save costs and increase quality!

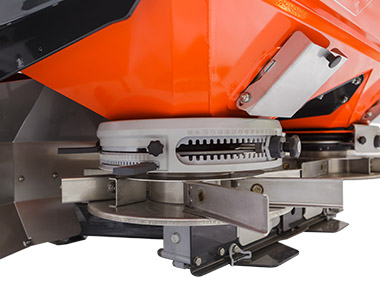

- The compact FlowPilot ‘dashboard’ gives you considerably simplified accurate setting and adjustment of application rates. Two hydraulically operated metering plates, each with three discharge openings ensure an equal fertiliser flow from the hopper to the spreading discs.
- The development department of Kubotas spreader R&D team has its own spreader competence centre in order to allow continuous testing throughout the year. All test are carried out according to the strictest international standards and quality requirement.
- The key to accurate spreading is matching fertiliser quality and litre weight with the spreading charts as close as possible. The RotaFlow 6 step checklist helps you to ensure consistent accuracy in all field conditions:
1. Select fertiliser type
2. Determine granule size and distribution
3. Determine litre weight
4. Select spreading table
5. Select field settings
6. Adjust FlowPilot system
- Kubota offers the TrimFlow systemborder spreading plate for border spreading. The TrimFlow can be accurately set for all types of fertiliser and for all working widths. Operation is easy, no need to leave the tractor seat.
- With one-side boundary spreading the tractor is driven approximately 2 metres from the field border.

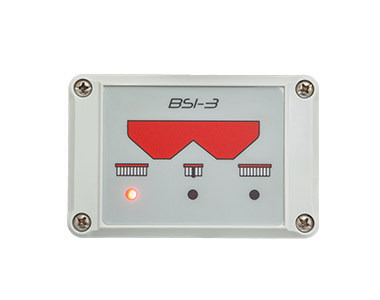

- The Border Spreading Indicator (BSI), indicates which border spreading device is active.
