The V6108 engine boasts the latest in clean-engine technology. Selective Catalytic Reduction (SCR) injects diesel exhaust fluid (DEF/AdBlue®) into the hot exhaust gas, transforming it into harmless water vapour and nitrogen. The Common Rail System (CRS) electronically controls the timing and amount of high-pressure injected fuel in stages for optimal combustion, which results in greater efficiency, better fuel economy and less engine noise. The combination of these two systems with a Diesel Particulate Filter (DPF) muffler and an Exhaust Gas Recirculation (EGR) system ensure that the M7-1 not only meets the latest Stage 4 emissions regulations, but dramatically exceeds them.
,
Power is the key to superior tractor performance, and the M7-1 has all that you need to handle any task quickly and efficiently. However, when a particularly tough job demands even more power for short periods, the M7-1’s Power Boost engages, and the engine instantly delivers more power from beginning to end.
,
Time spent at the fuel pump is time you’re not working on the job. To ensure you work longer
between refuelling stops, the M7-1 is equipped with extra large tanks for fuel (330 litres) and AdBlue (38 litres).
The M7-1 features Kubota’s original, dependable and automatic Powershift transmission that provides 4 forward and 4 reverse speeds across six speed ranges for a total of 24 speeds, that can be shifted without clutch. With so many speeds to choose from, it’s easy to match the right speed to the job.
,
Some special jobs can’t be done properly at normal working speeds. That’s why the M7-1 gives you 16 forward and 16 reverse creep speeds (option) to let you do those kinds of jobs at an extremely slow working pace.
,

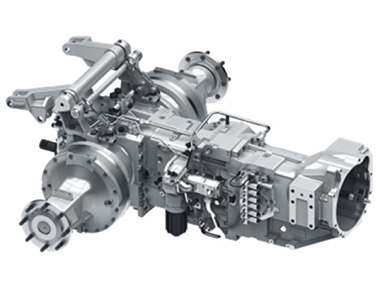

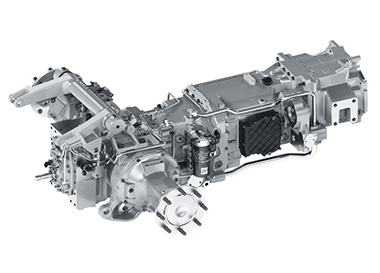

Available on the M7-1 Premium K-VT, this model provides a virtually infinite number of forward and reverse speeds, letting you work at the optimum speed for each job. Highly responsive and reliable, the K-VT transmission also features dynamic braking with engine-assisted deceleration, to help maintain control and a constant travelling speed while descending slopes.
,
For transport and moving between jobs, simply select the M7-1’s ECO mode. It reduces the engine speed while maintaining a travelling speed of either 40 km/h or 50 km/h (option). You’ll save fuel and work longer between refuelling stops.
,
The M7-1 is engineered to provide extremely high levels of manoeuvrability and control. One way it does this is by automatically matching the operating situation to the optimum speed, allowing the operator to concentrate on driving. During travelling, Travel mode adjusts the gears to the road conditions, incline (up or down) and amount of acceleration. In Field mode, the transmission shifts down 2 gears as soon as the three-point hitch is raised. Field mode also minimises changes in PTO revolutions when the PTO switch is engaged.

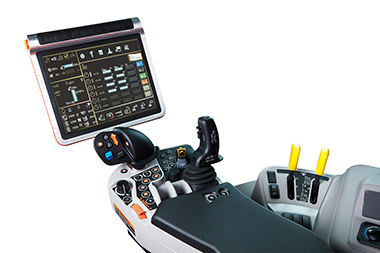

To help you get more work done in less time with less effort, Kubota has developed a unique multi-function operating lever that puts all of the M7-1’s major functions on a single easy-to-use control lever. Your right hand is always on the lever, leaving your left hand free for steering. Tractor operations couldn’t be simpler or more convenient.
,

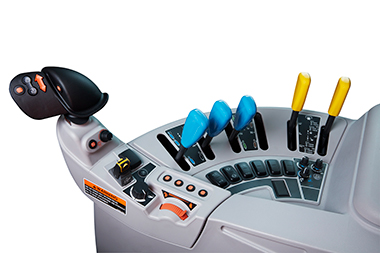

The Standard model features a simple multi-function lever that is easy to operate. A speed control switch lets you quickly change speeds and direction and work at the optimum speed for the task. Other functions under your fingertips are the range-change, linkage-lift & lower, shuttle and auto-gear-change.

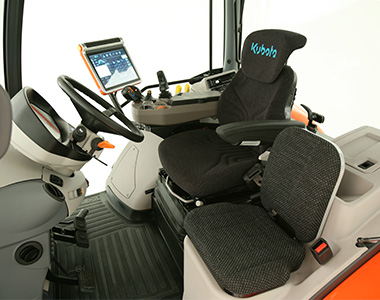

When you’re in the paddock from dawn to dusk, you want a comfortable ride to help you work efficiently. The M7-1’s extra-wide cabin is designed to do just that. With just four corner posts and no centre pillars to get in the way, the view out the front, rear and both sides is virtually unobstructed. The cabin design also reduces noise from the outside to a minimum, so you can work in a stress-free environment day in and day out.
,
The M7-1 cabin is available with your choice of suspension systems: Mechanical (Spring) or Air. The cabin suspension makes for a smooth ride and keeps you comfortable and productive for long hours.
,
The M7-1’s front suspension (option) helps ensure a comfortable ride as well as stable and precise operation. It works seamlessly with the shock absorbers to let you smoothly negotiate rough terrain and maintain traction. Automatic, Block and Manual modes are available to give the operator all the necessary choices.
The M7-1 premium models offer CCLS hydraulics and a variable flow rate that can handle a variety of functions simultaneously, as well as a 110 litre independent PFC pump and electronic valves control with four standard valves, power beyond and the option of a fifth valve.
,
The M7-1 standard model is ready to go to work with open centre hydraulics, 80 litre gear type pump and three mechanical control valves standard. A fourth valve is available as an option.
,

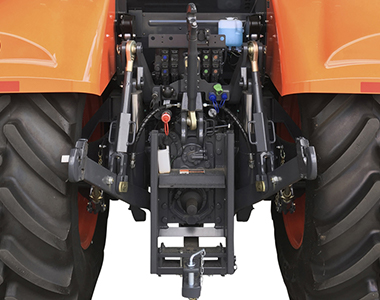

The Category III 3-point hitch offers a huge 9000kg lifting capacity to easily handle jobs that require heavy implements.
,
Kubota’s 4 speed live independent PTO gives you the ability to operate a variety of rear-mounted implements at their optimum speeds, the independent PTO can be engaged and disengaged on the run using a single control switch with automatic modulation for smooth engagement.
,
You’ll appreciate the convenience and precision Auto PTO provides when turning at the end of a row. Auto PTO automatically disengages the PTO when the linkage is raised, and then re-engages when the linkage is lowered.
,
An optional front 3-point hitch adds even more versatility to the M7-1’s already impressive capabilities.
,
The M7-1 also offers the optional front PTO, which allows front mounted implements driven with 1000rpm, for ultimate productivity.
