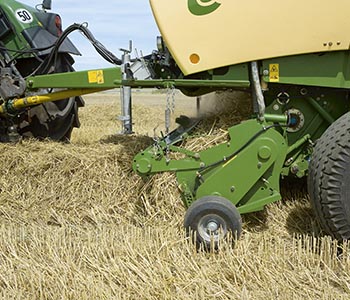

- Camless pickup featuring 5 rows of helically arranged double tines that collect the crop fast and cleanly.
- Heavy duty gears and drive chains offer a reliable overload protection giving piece of mind during those sudden impacts.
- Massive crop flow augers help shift crop from the sides into the bale chamber for uniform bale formation.
- The crop rollers helps eliminate the risk of pushing up crop in uneven windrows.

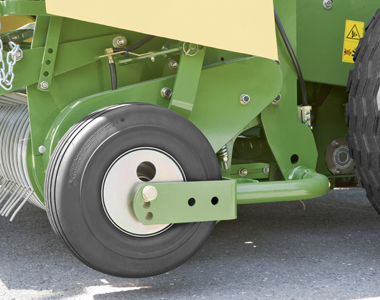

- Tool free adjustable gauge wheels allow you to adjust the height to suit current conditions for a superior ride.
- Designed to handle massive volumes of crop the feed rotor maintains a constant flow of material for the perfect bale.
- Two rows of welded tines arranged in a helical pattern ensures an even crop flow into the baler in a V – Formation ensure even crop flow and also fill the bale to the outside when picking up a narrower windrow.
- With a massive feed rotor diameter of 750mm with hardoxed plated tines arranged in a V formation provides continuous crop flow and densely packed crop inside the pre compression chamber.
- Should a blockage occur, the floor of the feed area and the knife bed lower hydraulically to the passageway and allow the crop to pass smoothly.
- The knives cut the crop across the entire length of the cutting edge, their wavy edge provides for longevity and clear cuts.
- All knives are individually protected by a spring mechanism that breaks back when hitting a foreign object, once the object is passed they return to cutting position automatically.
- Hydraulic knife selection system engages and disengages the knives in sets of 0,13, and 26, the operator can choose between two spacings 42mm and 86mm.

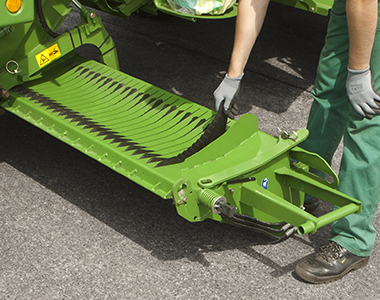

- The knives are bedded in a drawbar that drops hydraulically and then pulls out to the side for easy fitting/removal from the side of the machine.
- Metal slats and endless rubber belts form the ideal combination to make to form highest density bales no matter the crop or conditions.
- NovoGrip belts come with 30,000 bale/ 3 year warranty.
- The slats mesh around the crop without any slippage to the bale or drive of the belts, they provide a positive feed at all times be it wet silage or dry hay/straw.
- All NovoGrip belts are tested under extreme resistance with belts only operating under 10% of their resistance tear load.
- Heavy duty 1½” drive chains to withstand the highest of loads. Spring-loaded tensioners reduce maintenance and extend the service life of the chains.

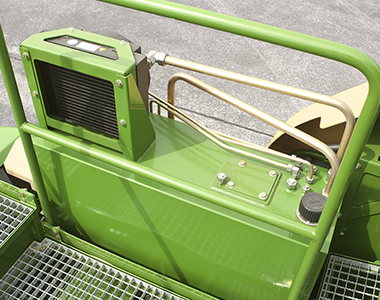

- The onboard hydraulic system including air cooler takes care of a steady oil supply to the individual hydraulic components. An inspection in the oil reservoir shows the current fill level.
- Automatic chain lubrication that uses an electric pump to apply oil and grease.
- Automatic and central lubrication system is standard specification and attends to all grease points making service and maintenance easier increasing durability.
